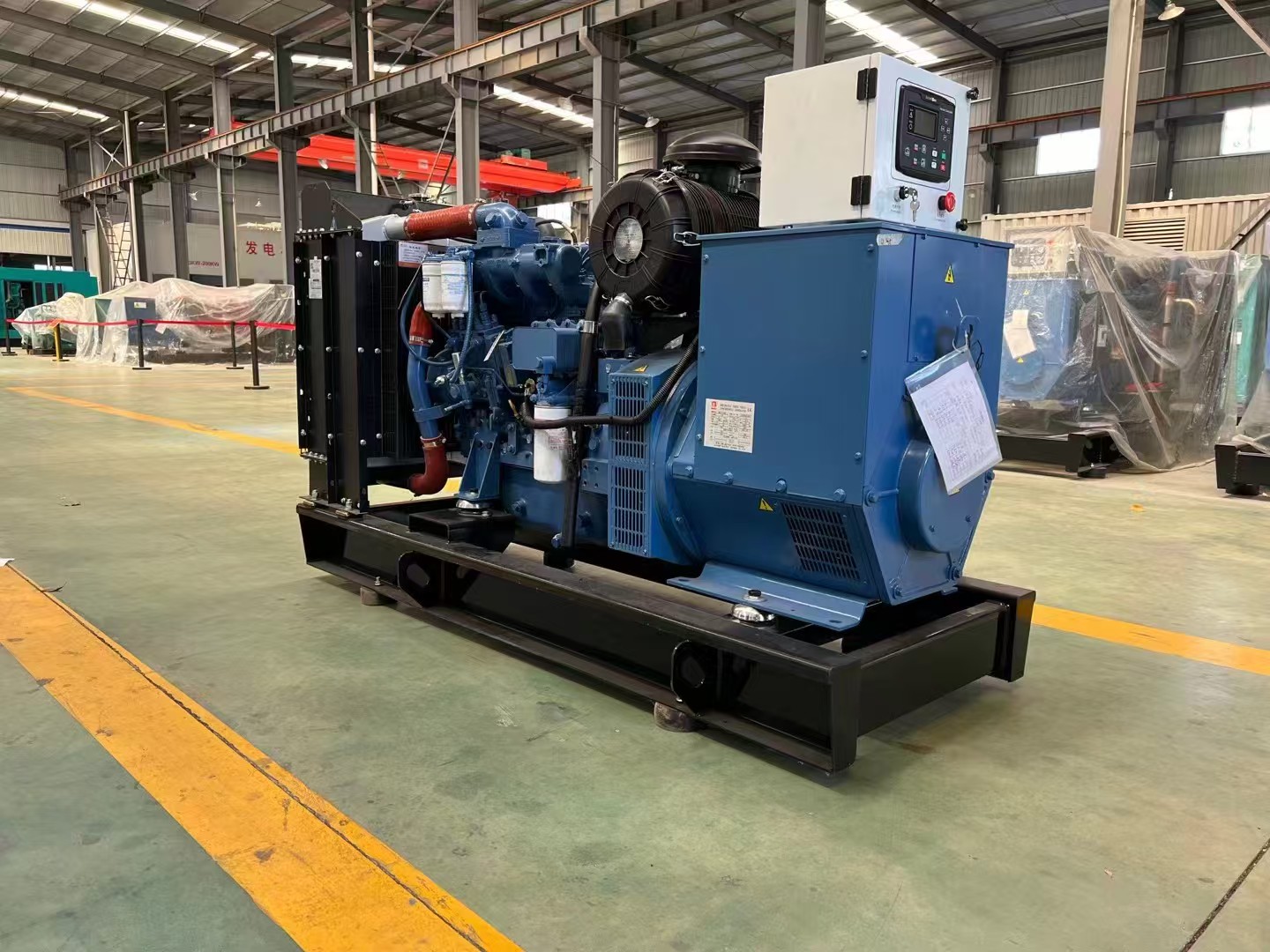

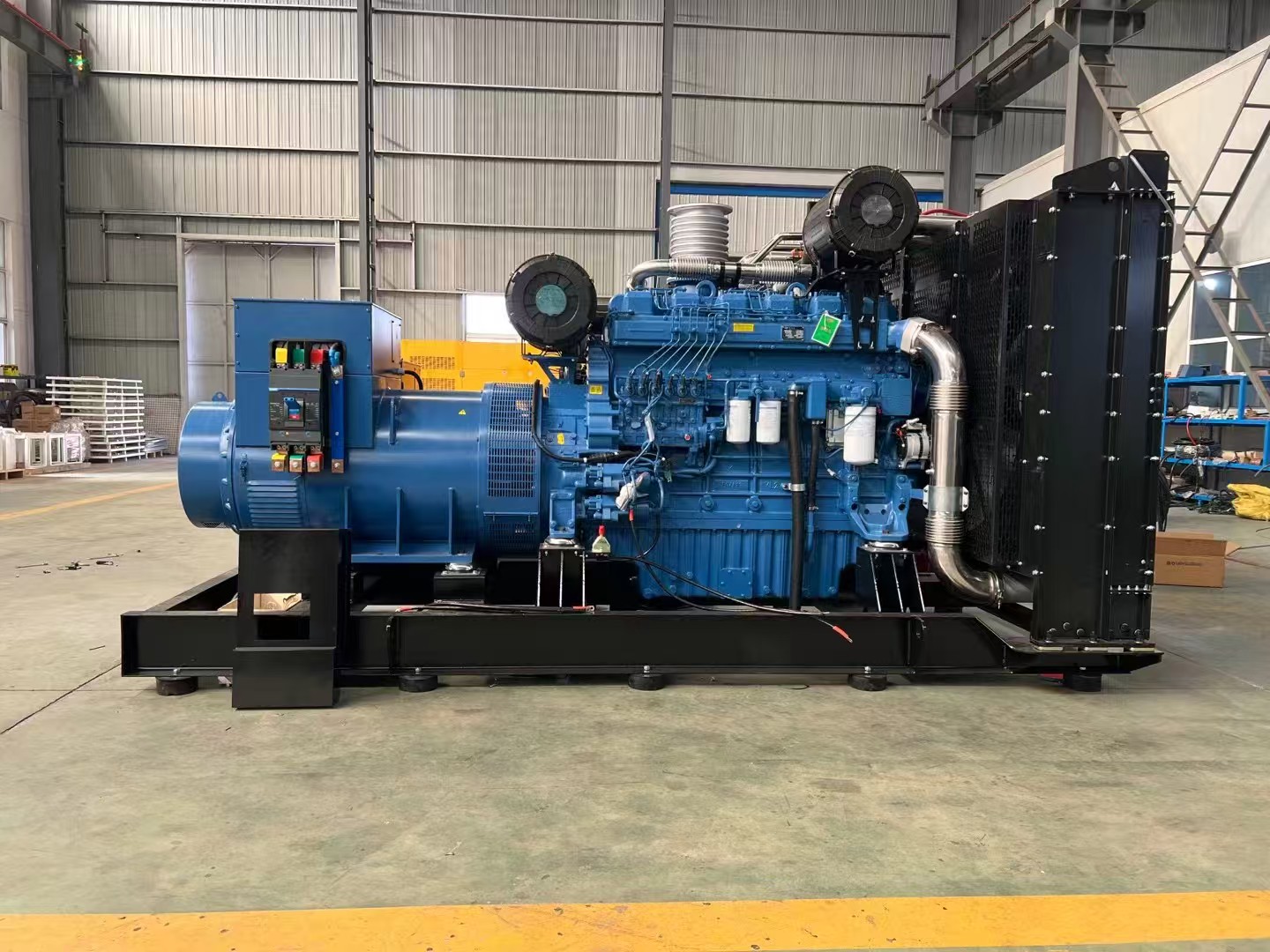

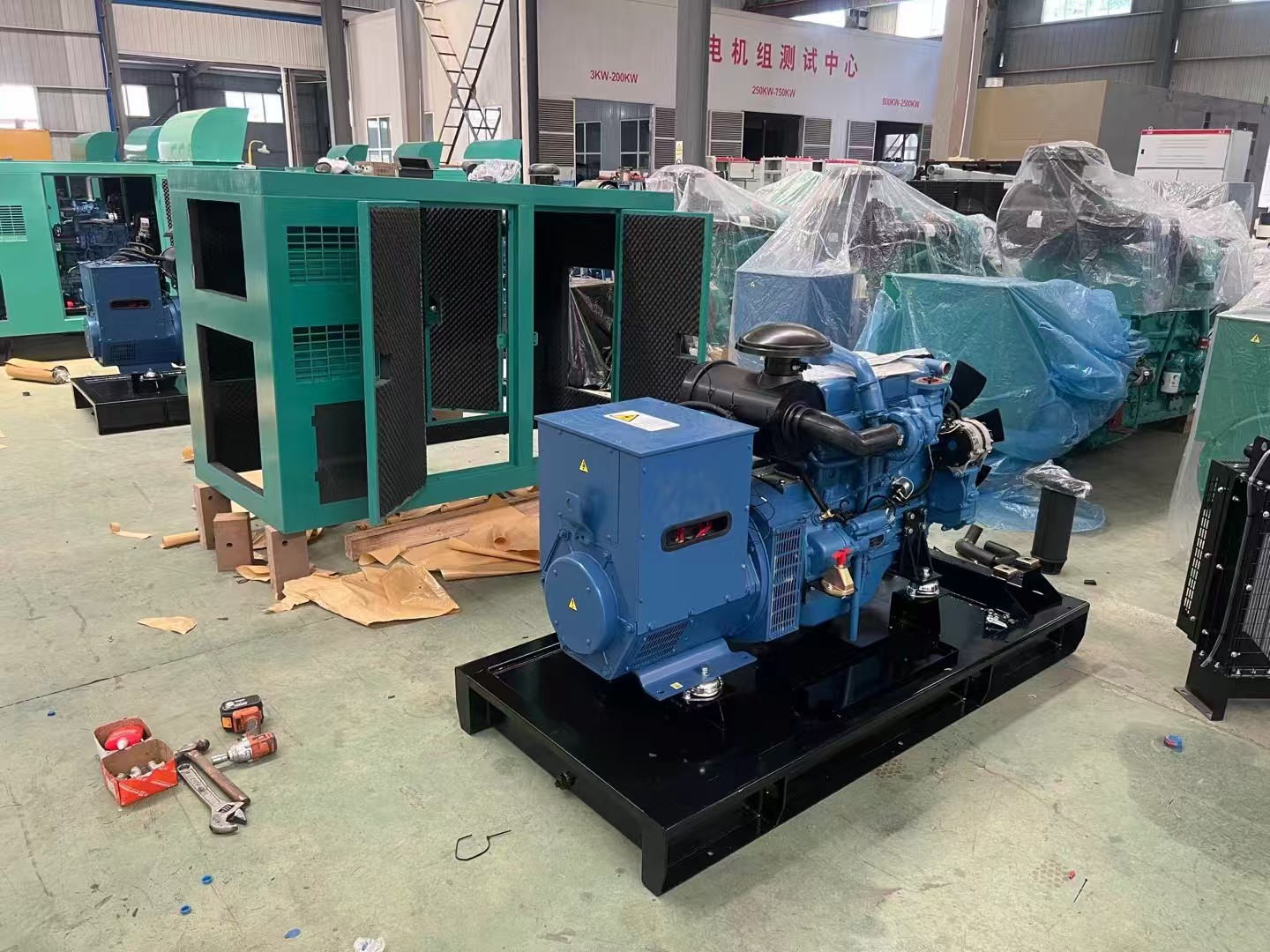

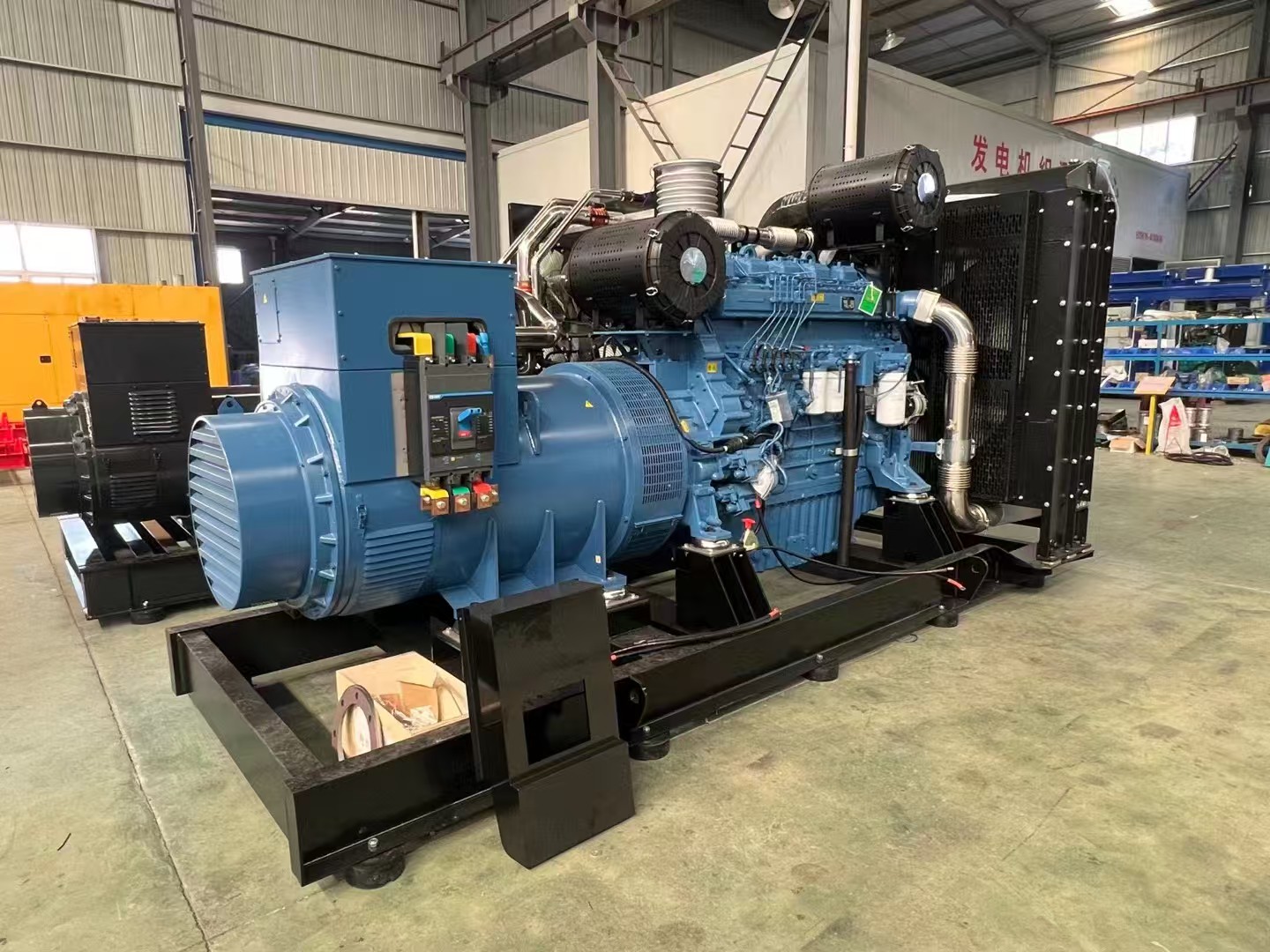

YUCHAl series diesel generator sets, adopt YC2, YC4, YC6 series engines produced byGuangxi Yuchai Diesel Engine Co, Ltd. with our newest design KLG series brushlessalternators/generators. The gensets have good performances with : low fuel/oilconsumption, high reliability
| Model | Power | Engine model | Cylinder | Displacement(L) | Bore*Stroke(mm) | CR | Consumption (g/kw.h) | Size L*W*H (mm) | Weight(kg) | |
| (KW) | (KVA) | |||||||||
| HF-40 | 40 | 50 | YC4D6C-D21 | 4 | 4.20 | 108/115 | 17.0:1 | 202 | 1800×780×1250 | 800 |
| HF-50 | 50 | 62.5 | YC4D85Z-D20 | 4 | 4.2 | 108/115 | 17.5:1 | 198 | 1900×780×1250 | 810 |
| HF-75 | 75 | 93.75 | YC6B135Z-D20 | 6 | 6.90 | 108/125 | 17.5:1 | 200 | 2300×850×1350 | 1200 |
| HF-100 | 100 | 125 | YC6B155L-D21 | 6 | 6.871 | 108/125 | 17.5:1 | 198 | 2400×850×1500 | 1300 |
| HF-120 | 120 | 150 | YC6B180L-D20 | 6 | 6.9 | 108/125 | 17.5：1 | 198 | 2400×850×1500 | 1400 |
| HF-150 | 150 | 187.5 | YC6A210L-D-20 | 6 | 7.25 | 108/132 | 17.5:1 | 192 | 2500×900×1650 | 1600 |
| HF-150 | 150 | 187.5 | YC6A230L-D-21 | 6 | 7.25 | 112/132 | 17.5:1 | 192 | 2500×900×1650 | 1600 |
| HF-180 | 180 | 225 | YC6L275L-D30 | 6 | 9.85 | 120/145 | 17.5:1 | 192 | 2800×1100×1700 | 2200 |
| HF-200 | 200 | 250 | YC6M285L-D20 | 6 | 9.85 | 120/145 | 17.5:1 | 195 | 2800×1100×1700 | 2300 |
| HF-250 | 250 | 312.5 | YC6M285L-D21 | 6 | 10.30 | 123/145 | 17.5:1 | 195 | 3000×1100×1800 | 2500 |
| HF-250 | 250 | 312.5 | YC6MK390L-D20 | 6 | 10.30 | 123/145 | 17.5:1 | 195 | 3000×1100×1800 | 2500 |
| HF-300 | 300 | 375 | YC6MK410L-D20 | 6 | 10.30 | 123/145 | 17.5:1 | 195 | 3000×1100×1800 | 2700 |
| HF-300 | 300 | 375 | YC6MKL470L-D20 | 6 | 12.16 | 123/145 | 17.5:1 | 192 | 3100×1100×1900 | 3000 |
| HF-350 | 350 | 437.5 | YC6K500L-D30 | 6 | 16.35 | 145/165 | 15.0:1 | 195 | 3600×1100×1950 | 3800 |
| HF-400 | 400 | 500 | YC6T600L-D20 | 6 | 16.35 | 145/165 | 15.0:1 | 195 | 3900×1100×2000 | 4050 |
| HF-440 | 440 | 550 | YC6T660L-D20 | 6 | 16.35 | 145/165 | 15.0:1 | 195 | 3950×1100×2000 | 4200 |
| HF-500 | 500 | 625 | YC6C900L-D20 | 6 | 16.35 | 145/165 | 15.0:1 | 195 | 4000×1200×2100 | 5000 |
| HF-560 | 560 | 700 | YC6C900L-D21 | 6 | 16.35 | 145/165 | 15.0:1 | 195 | 4000×1300×2100 | 5500 |
| HF-600 | 600 | 750 | YC6C900L-D22 | 6 | 39.58 | 200/210 | 15.0:1 | 195 | 4000×1400×2100 | 6000 |
| HF-640 | 640 | 800 | YC6C1020L-D20 | 6 | 39.58 | 200/210 | 15.0:1 | 195 | 4000×1500×2100 | 7000 |
